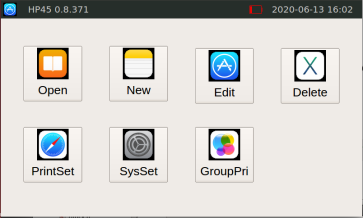

1.Main operation interface

The main operation interface has five items:  open files, create new files, edit files, delete files, print setting, system setting and group printing.

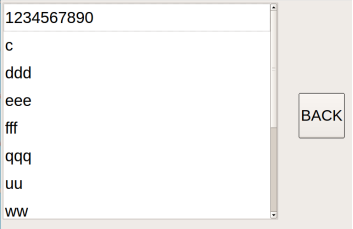

2.Openfiles

Click to enter the printing selection interface, and select the file you edited in advance!

After selecting the file to be printed, four modifiable parameters will be seen on the printing interface.

1.Delay: you can adjust the printing delay interval. The smaller the value, the shorter the delay.

2.Word width: the width of the text can be adjusted.

3.Positive and negative: the positive and negative directions of the printed file can be changed.

4.Inversion: you can turn thecontentupside down.

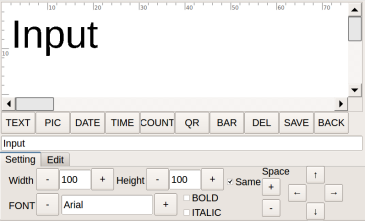

3.Edit files

Some operation options can be seen after entering the edit files page

1). Insert text to edit the text you want to print.

2). Insert the picture in the USB flash disk.

3). Insert the current date.

4). Insert time (The printed time changes with time)

5). Insert Counting number.

6). Insert QR code

7). You can delete the wrong picture or files.

8). Save files.

9). Return.

10). Vertical: the edited file can be zoomed in vertically, also the printing result will change accordingly

11). Equal scale: when zooming in vertically,

the file will be stretched in equal proportion.

12). Rotate: rotate the edited file

13). Mirror: mirror the selected file.

4.Delete files

After entering the delete file page, select the file you want to delete and click it to pop up the deletion prompt. Click OK to delete the file.

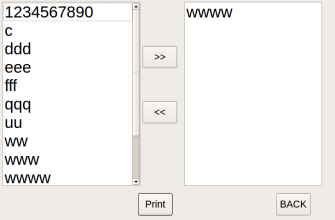

5.Group printing

Group printing can print the files in the selected column from top to bottom, which is convenient for multi line text when the text is too large.

How to use: select the files that you want to print in groups and import them into the column on the right in order and click

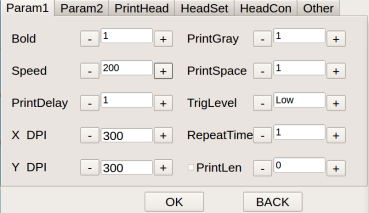

6.Parameter setting

1). Bold: can be bold print file content

2). Grayscale: can deepen the printing effect.

3). Speed: speed up the printing. The larger the value, the smaller the spacing.

4). Print interval: the space between two messages.

5). Printing delay: delay the printing time of documents.

6). Trigger level:

7). Repeat printing: the number of times the information is printed repeatedly.

8). Fixed length printing: specify the length of information. (printing information will not exceed the specified value)

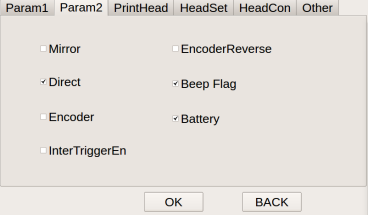

9). Synchronizer: trigger with synchronizer.

10).Internal trigger enable: equivalent to continuous printing. (synchronizer must be equipped if the speed of production line is not uniform)

11). synchronizer reverse: adjust the rotation direction of synchronizer.

When testing the synchronizer, first rotate 2 turns in the forward direction, and 4 turns in the reverse direction if there is no effect.

12). buzzer sounds

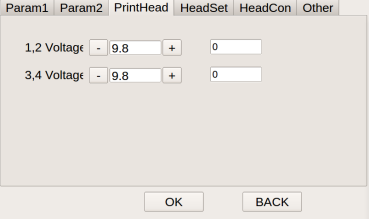

13). 1, 2 head voltage: the nozzle voltage can be adjusted.

14). 3, 4 head voltage: the nozzle voltage can be adjusted..

15). Restore settings (in others)

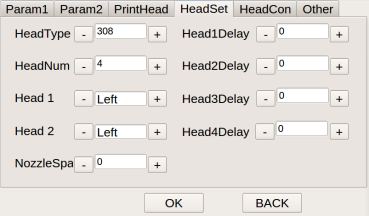

Nozzle setting

1.Nozzle type: change according to nozzle type.

2.Number of nozzles: adjust the number of nozzles used

3.The printing mode of ink cartridge is adjusted by nozzle 1 and 2.

4.Double row spacing: adjust the space between left and right sides of 150 ink cartridge

5.Nozzle 1, 2, 3, 4 delay: adjust the delay time of single nozzle.

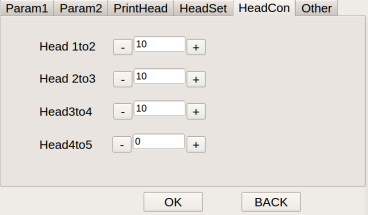

Nozzle splicing

Splice the sprinklers together.

Adjusting the value can pull apart the overlapped information.

7.System settings

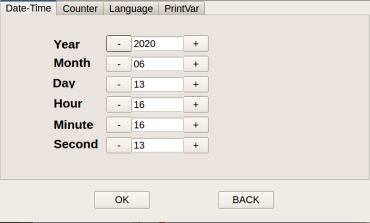

1). Time setting, you can adjust the current time of the system. (the time inserted in the edit will be the same as the time in this setting)

2). The display format of time and date can be adjusted.

3). counter: you can set the starting value, current value and duplicate value of the insertion count.

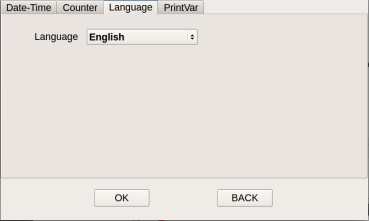

4). Language: you can choose the language to use.

Print variables

1.Ethernet transmission: information transmission between computer and host computer.

2.USB: it is used to print database, and use U disk to print variable of database.

3.Enable variable repeated printing

4.separator: used to separate fields.

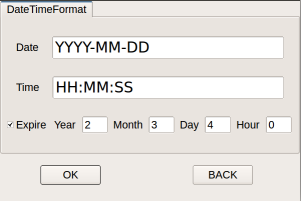

Double click the date in the edit page to pop up.

Can be used to change the time and date format.

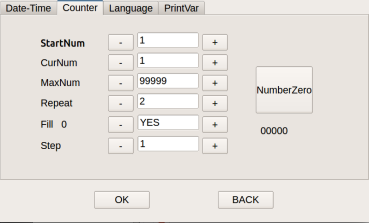

Counter

On the edit page,

double-click count to open.

In the edit page, double-click the QR code to open the parameter settings

Data source: external can be used to print variable database.

Field: select the field of external information.

Bar code parameter setting

Set barcode information

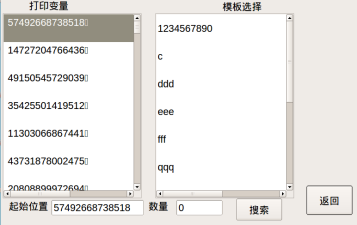

After using the print variable, select the edited print template in the print file to print the variable.

Maintenance of ink cartridge

The correct use and storage methods can make the ink cartridge maintain the best spray printing effect and prolong the service life of the ink. Please strictly follow the maintenance instructions of our company. (if our customers don’t strictly follow the maintenance operation and caused some problems, our company will regard it as the customer’s operation error and will not deal with it.)

1 .the unopened ink cartridge should be placed in our original unsealed package until it is used. Once the cartridge package is open and contact with air, the ink will inevitably slowly evaporate from the cartridge. Therefore, the unopened ink cartridge can be stored for a longer time in the original unsealed package.

2. once the ink cartridge is unsealed, it is recommended to use it as soon as possible to avoid nozzle clogging due to the limited time for the nozzle to remain dry

Note: due to different ink types, drying time and maintenance methods will be different. Please consult our after-sales service personnel for details.

3. if the ink cartridge can not be used up in one time after unsealing, it must be taken out of the inkjet printer when it is not in use, and the ink cartridge provided by our company shall be used to clamp the ink cartridge and put it in the sealed container. (store at room temperature)

Note: do not seal the cartridge with tape and do not put the cartridge in a soft plastic bag.

4. the surface of the nozzle is particularly delicate. Do not touch or wipe the nozzle with hard and rough objects to avoid nozzle scratch.

5. when wiping the nozzle, please use the non-woven fabric purchased from our company.

Note: for the direction of wiping the nozzle, the wiping cloth should be placed flat on the table top to keep the wiping cloth flat, with the nozzle downward, and wipe vertically along the two rows of nozzles. Do not wipe the nozzle horizontally to avoid the damage to the nozzle.

6.do not shake the ink cartridge or place the cartridge in a vibration environment, so as to avoid air bubbles inside the cartridge and affect the printing quality. In order to make you get the best inkjet printing quality, according to different types and specifications of ink, detailed precautions, maintenance, please contact our after-sales service personnel for more instructions on the use of ink.
