Carton printer

The carton printing machine is a machine that can print the required text, pattern, QR code and other information on the surface of cartons, white cards, paper bags, envelopes, file bags, and other materials. Its characteristics are: no need for plate making, one printing, simple operation; after matching with a fully automatic loading and unloading machine, a single person can independently complete the printing task.

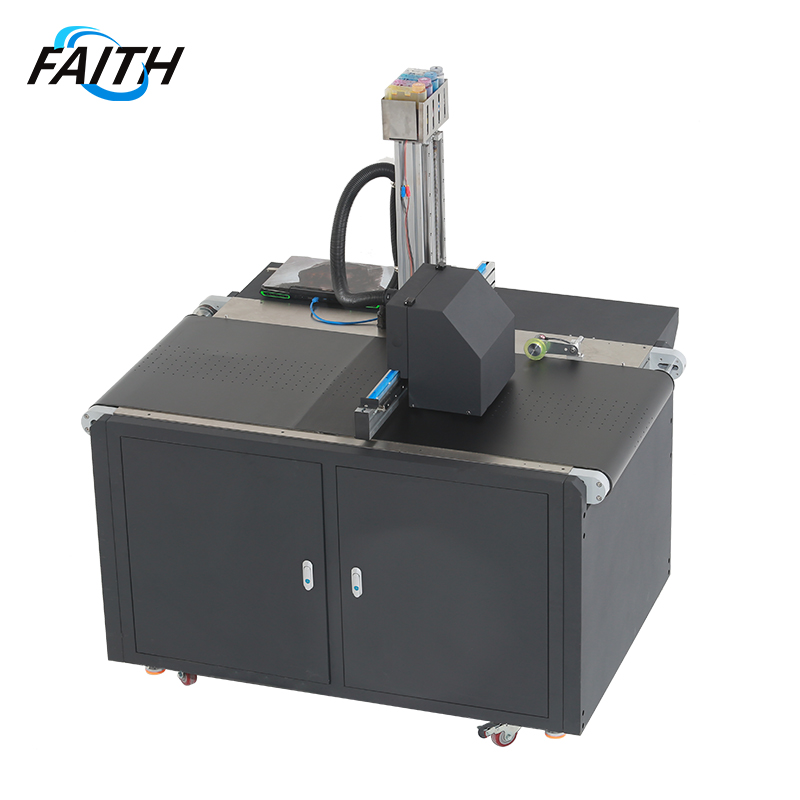

ONEPASS digital printing machine is a high-precision rewinding digital printing machine, suitable for aircraft boxes, cartons, corrugated paper, handbags, packaging boxes and other types of products. The equipment adopts PLC control, industrial nozzle, intelligent constant pressure system, 5PL ink drop size high resolution, infrared height measurement, combination of paper feeder and paper receiver; at the same time, the product height and printing width can be automatically adjusted and customized to meet different customers Individual needs.

Click above to play the video

FEATURES

There are two kinds of water-based ink, one is water-based pigment ink, and the other is water-based dye ink. The two are very different. The water-based pigment can resist ultraviolet radiation, and it is fadeless and waterproof. Water-based dye can’t resist ultraviolet radiation, and it is not waterproof, which will fade over time.
* These two inks are selected according to different your needs. If you require the ink to be waterproof and want to keep it for a long time, then choose water-based pigment ink. If you do not require the ink to be waterproof, and just want to keep it for a short time, then choose water-based dye ink.
* Water-based ink has 4 colors: C, M, Y, and K ( Cyan, Magenta, Yellow, Black)
* One liter of ink can print 60,000 pieces of A4 paper with 5% coverage

*Type of Printing Medium:
Water-based ink is used on water-absorbing material, such as cartons, corrugated boxes, pizza boxes, non-woven fabric, sacks, handbags, canvas bags, cotton bags, wood boards, paper, disposable paper cups, egg boxes, etc.

0-110 mm. The print head can move upward and downward to meet different printing thickness

The software is developed by ourselves, and our factory can upgrade your software by remotely controlling it in the future.

Machines of different models have different dimensions and weights. The packaging size of the machine with an 80cm conveyor belt is 215*115*105 CM. The weight is about 250 KG.

Two years warranty, not including consumables such as print head, and ink.

SPECS

Maximum printing format

Wide single nozzle 21CM (customizable price) unlimited length

nozzle type

HP Industrial Printhead

Feeding method

Two-way in and out conveying and feeding

Printing accuracy

1200* 3001200*600 1200*1200dpi

print mode

One pass printing

inkjet technology

Thermal foam

ink type

Environmentally friendly and odorless water-based ink pigment dye

Ink loading method

cartridge refill

print height

Printing height, the maximum printing height is 20cm (customizable)

WARRANTY

30 DAY-MONEY BACK GUARANTEE

It’s perfectly normal for you to be skeptical about investing in a new inkjet printer! That’s why FAITH PRINTER makes every effort to absorb as much risk as possible so that you are free to make the right decision. We want to make it easy for you to prove that our printing systems are quality machines backed by quality support.

As our customers, we want you to be 100% satisfied. FAITH PRINTER guarantees you a 30-day return guarantee window (from the date of receipt) to evaluate your purchase. Click here for details.

2 YEAR LIMITED WARRANTY

FAITH PRINTER warrants its products and parts against defects in materials or workmanship for two (2) years from the original date of receipt. Click here for detail
